Technologies
by Bekum
Technologies for your extrusion blow moulding machine
Efficiency, precision and sustainability in every detail.
Every Bekum blow moulding machine is built on mature technologies that bring together productivity, precision and sustainability in extrusion blow moulding. From patented clamping systems such as the C-frame and e-Twin-Toggle, through the digital Bekum Control 8.0 control system, to solutions for energy and material savings, automation, multi-layer extrusion, fast mould changes and high output – we develop every technology with your everyday production in mind.
As a manufacturer with over 60 years of experience in extrusion blow moulding, Bekum combines proven machine concepts with innovative technology – for greater efficiency, higher product quality and more sustainable operation of your blow moulding machine.
C-Frame & e-Twin-Toggle | Precision Clamping Unit for the Blow Moulding Machine
Patented C-frame and exclusive clamping drive for maximum precision and process reliability in the extrusion blow moulding machine.
With the patented C-frame and the exclusive e-Twin-Toggle system, Bekum offers two purpose-built key technologies for the extrusion blow moulding machine. The C-frame delivers even clamping force distribution across the full mould width, ensuring perfect platen parallelism – even at high output. The e-Twin-Toggle system relies on low-friction, long-life mechanics with precise force transmission, noticeably reducing maintenance requirements. The system can dynamically adjust clamping force during pinch-off, enables automatic mould thickness adjustment at mould change, and runs especially energy-efficiently thanks to fully electric drives.

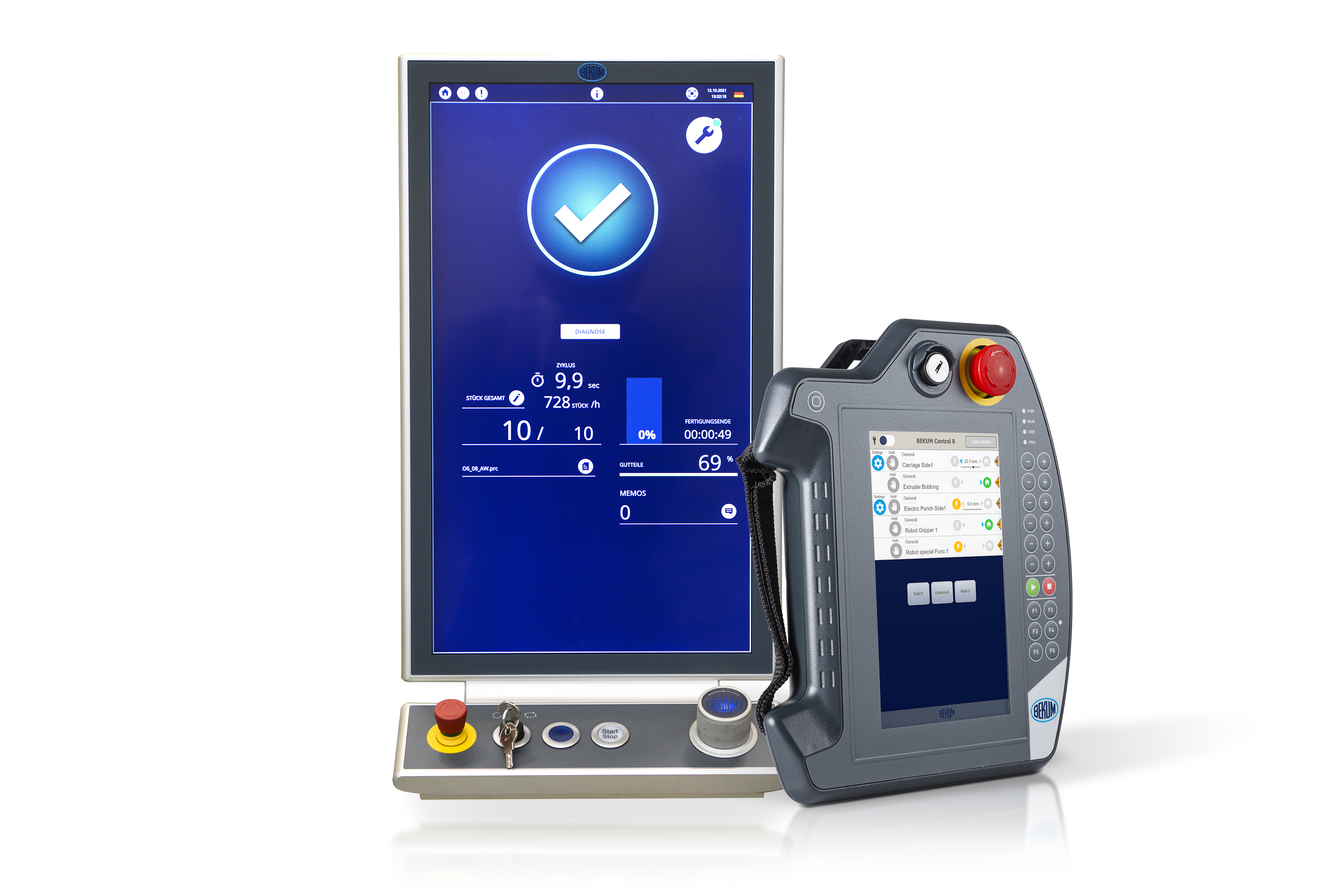

Bekum Control 8.0 | Intuitive Touchscreen Control for Industry 4.0
24-inch touchscreen control with Industry 4.0 connectivity for your blow moulding machine.
With Bekum Control 8.0, your blow moulding machine’s control system becomes more powerful than ever. The 24-inch Full HD touch display with eight freely configurable quick-select fields ensures clear operation and short training times. A customisable dashboard lets you monitor throughput, energy, compressed air and water consumption in real time, so you can optimise production based on data. Thanks to TwinSafe safety technology and secure network segregation, the control system is fully integrated into machine safety, while VPN-encrypted remote maintenance with augmented reality support delivers fast assistance regardless of location. Existing Bekum machines can also be retrofitted with Bekum Control 8.0.

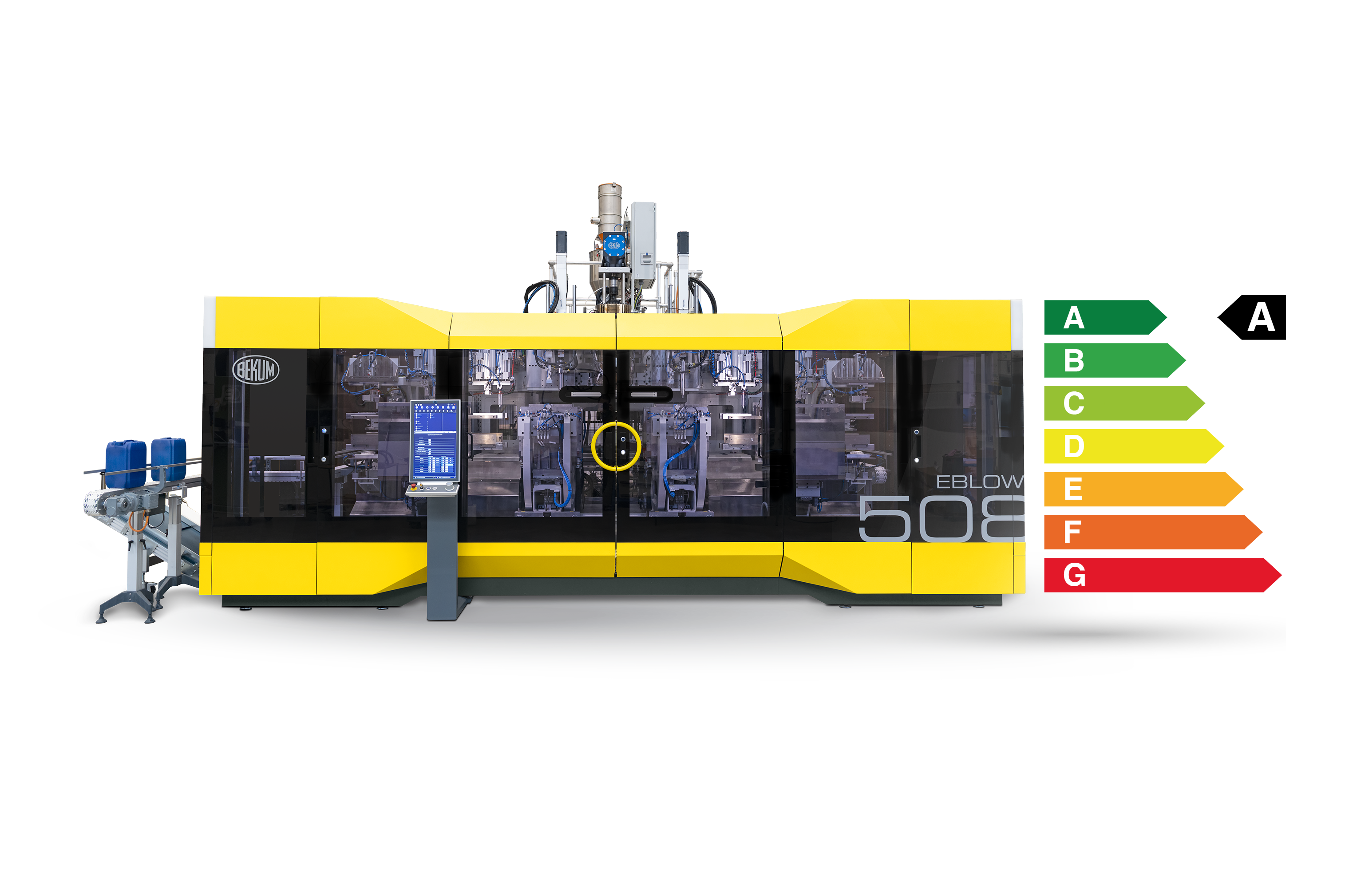

Energy Savings | More Performance, Less Consumption
Fully electric drive technology for maximum energy efficiency in your extrusion blow moulding machine.
In extrusion blow moulding, Bekum consistently relies on fully electric drives: the HiPEx 36D extruders cut energy consumption by up to 20% through direct-drive gearing and IE5 motors. The clamping drive, carriage movement, extruder tilt and blow stations, as well as the die head’s wall thickness control, also run fully electrically. Modern heating systems shorten heat-up and restart times, reducing energy consumption during downtime. Demand-based motion profiles further reduce energy requirements – for more economical and sustainable production with your blow moulding machine.
Material Savings | Less Material, Same Stability
Precise wall thickness control for maximum material efficiency in extrusion blow moulding.
With spiral mandrel die heads, Bekum enables precise control of wall thickness and layer structure – minimising material usage while maintaining consistent product stability. Integrating regrind and fillers further reduces material consumption, while fast colour changes with minimal material waste improve cost-effectiveness. Dynamic die-head wall thickness control also improves cooling and cycle time for your blow moulding machine.
Automation | At the Highest Level
Fully automated processes for maximum efficiency in the blow moulding machine.

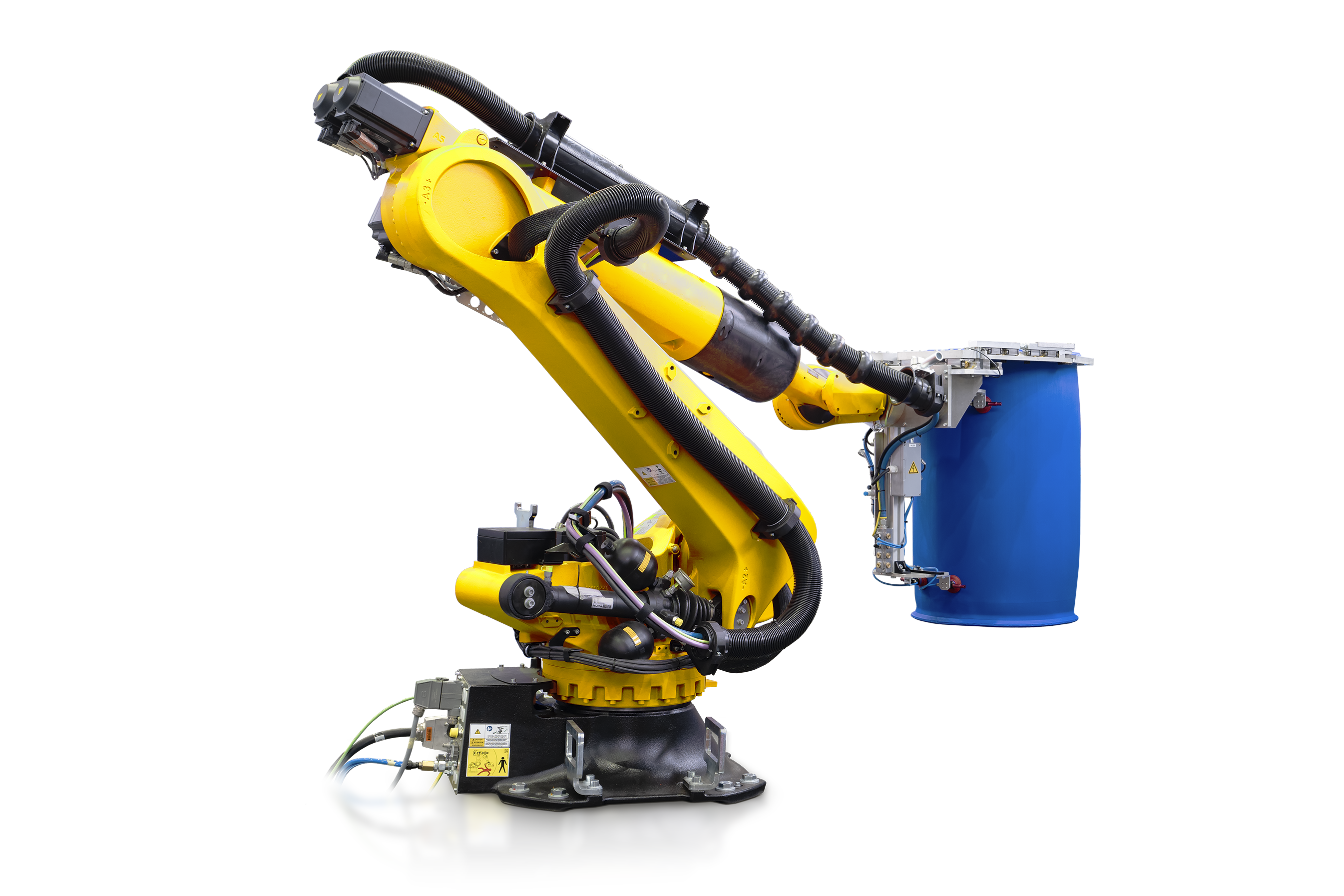

From in-mould labelling (IML) technology, through integrated inspection systems for leak testing, wall thickness and weight, to carrier systems for automotive fuel tank assembly – Bekum offers end-to-end automation solutions for your extrusion blow moulding machine. Six-axis robots handle the produced containers and waste. For regrind recycling, automated material feed with reprocessed material streamlines the entire production process for greater efficiency.

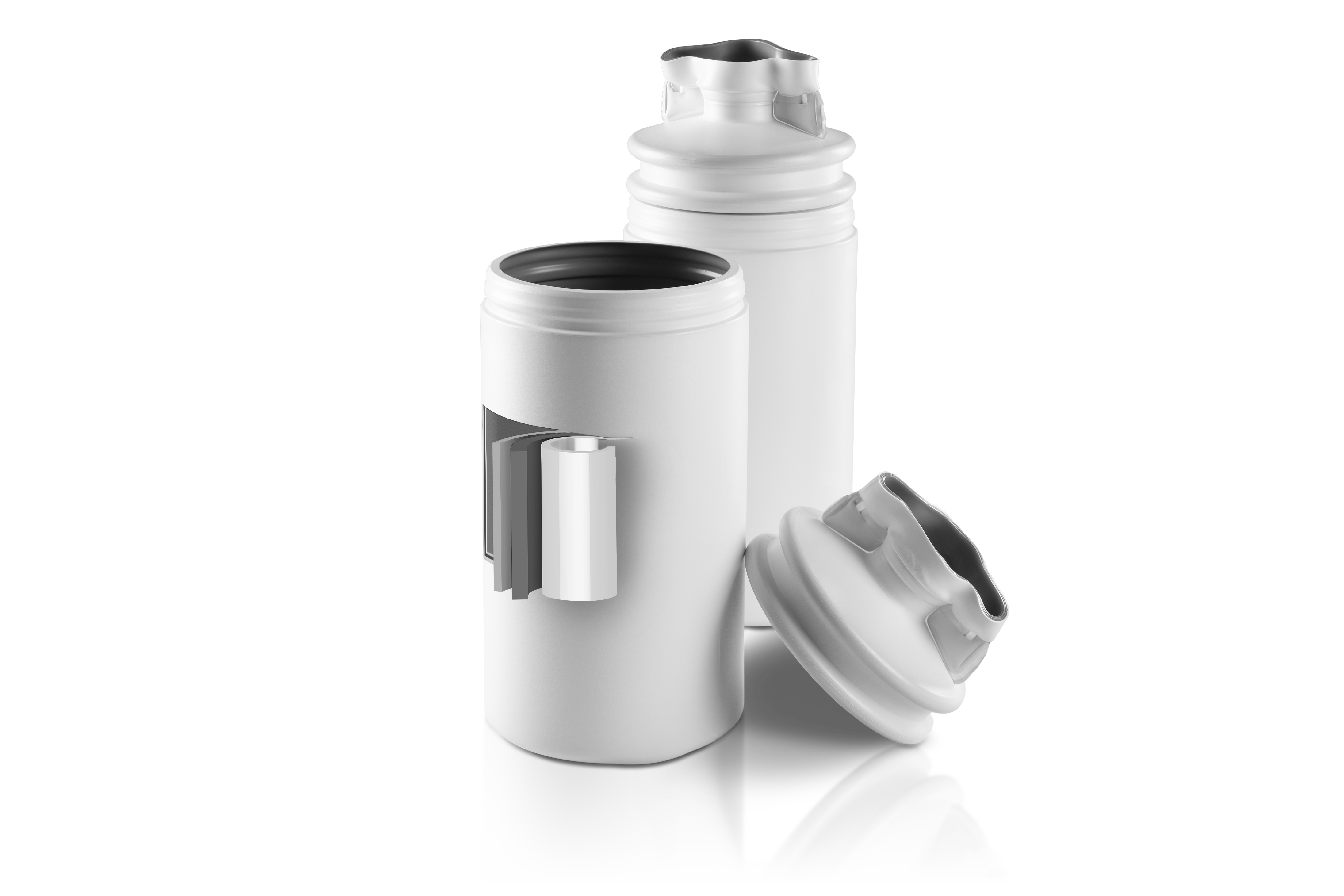

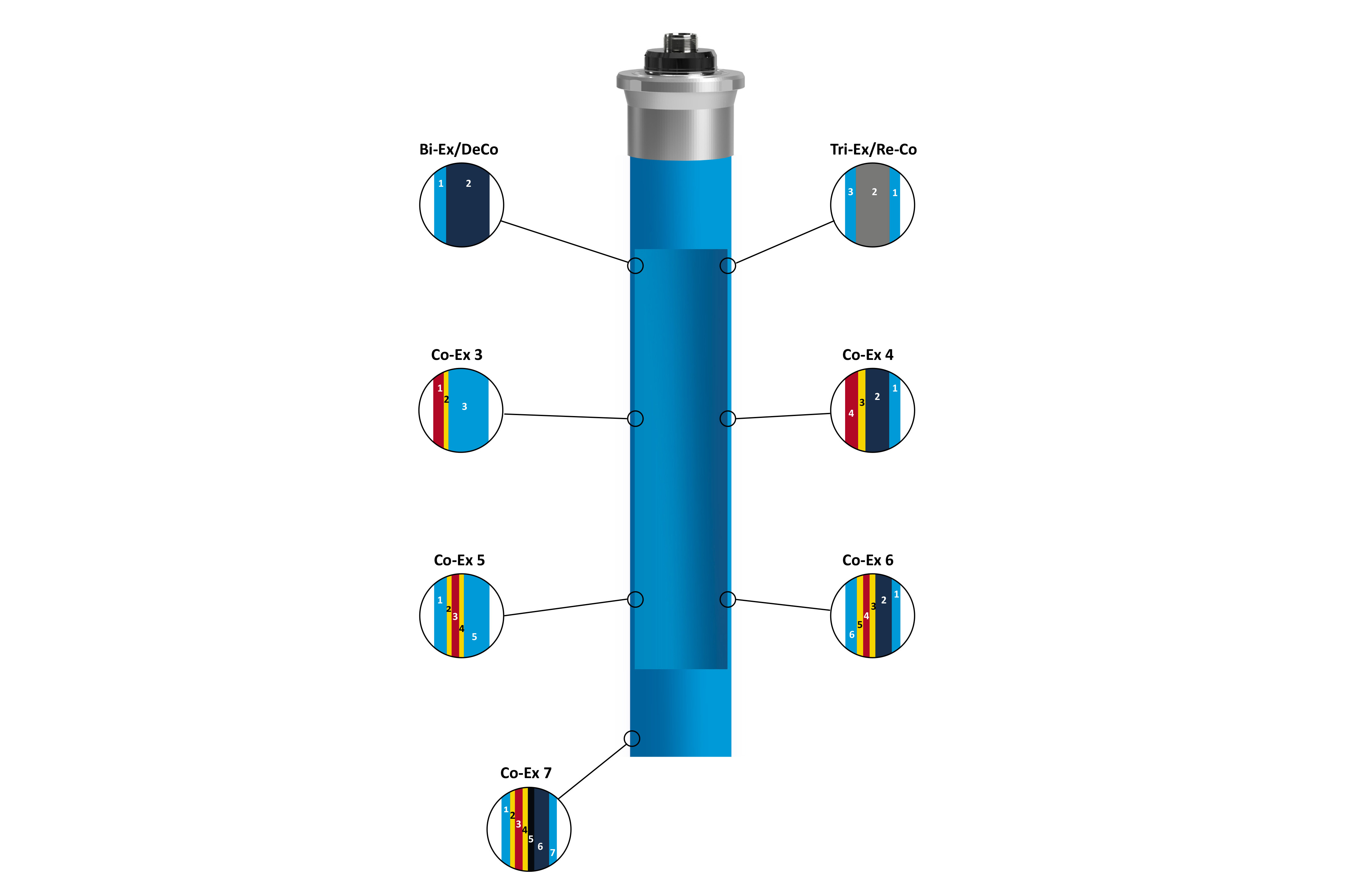

Multi-Layer | Multi-Layer Technology for Maximum Functionality
Up to 7 material layers for optimum product protection in the extrusion blow moulding machine.
With Bekum’s co-extrusion and multi-layer technology, up to 7 material layers can be combined in a single blow moulding process. EVOH barrier layers extend product shelf life by up to 12 months, while spiral mandrel die heads ensure even layer distribution. A PP inner layer enables hot filling, while the combination of recycled HDPE and a barrier layer brings together sustainability and functionality in your packaging.
Quick Mould Change | Flexibility That Pays Off
Tool-free mould changes without recalibration for your blow moulding machine.

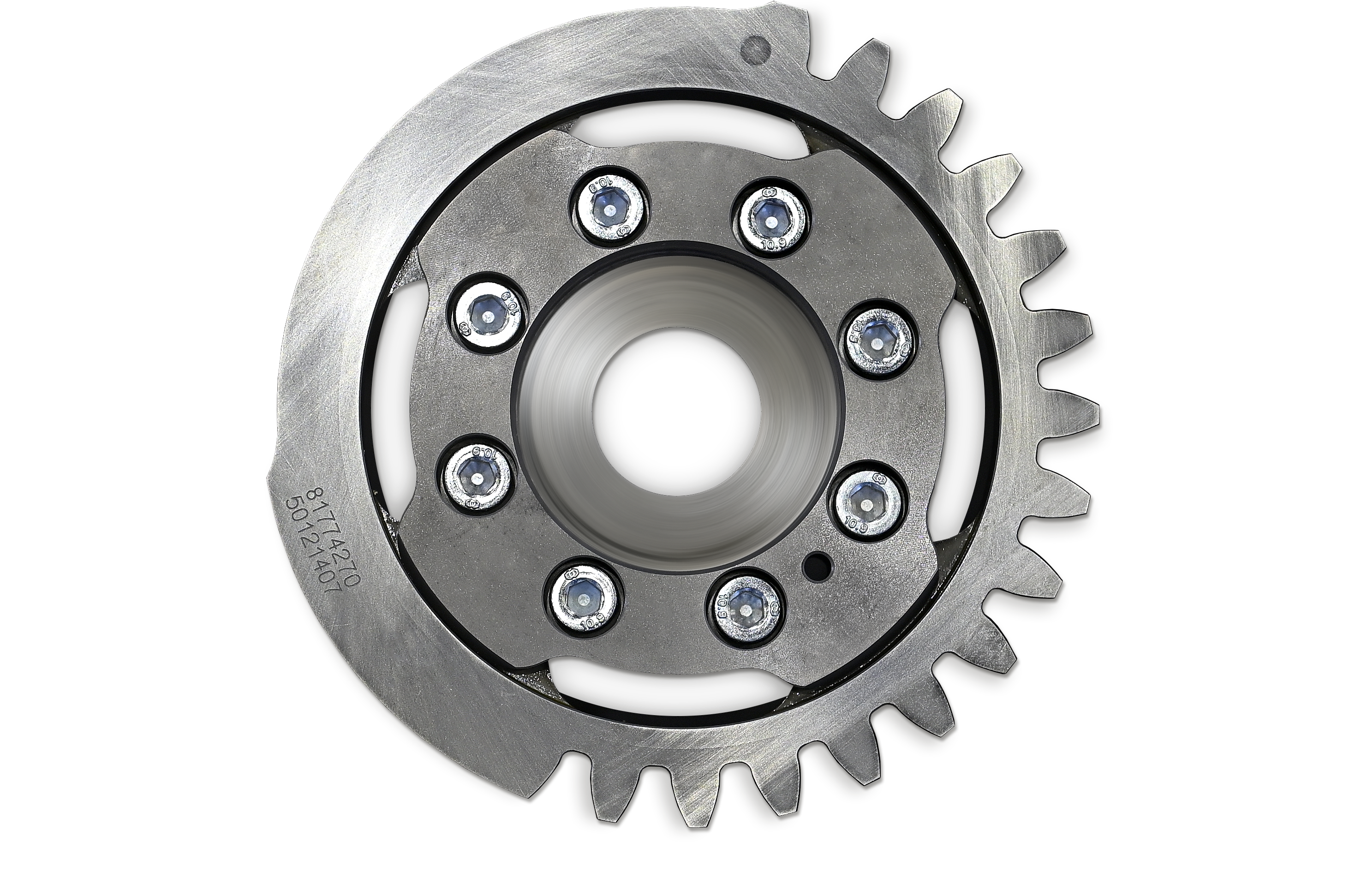

Bekum enables mould changes without tools and without recalibration – for maximum flexibility in production. A bayonet quick-change system is available for larger formats, while smaller machines use the Bekum quick-change system with spring-loaded locking. An integrated roller table makes it easier to access the mould, while automatic centring and alignment ensure short set-up times and high repeat accuracy.
High Output | More Production in Less Time
Multi-cavity, tandem blow and high-speed production for maximum output from your blow moulding machine.
With its multi-cavity concept, Bekum produces up to 24 articles per cycle by making optimal use of the platen width. The tandem blow process doubles output through base-to-base blowing, reaching up to 18,000 pieces per hour – ideal for smaller packaging. For large-volume containers such as 20-litre jerry cans, high-speed production with an external cooling line delivers up to 240 pieces per hour for maximum production performance.
