The Industry
"Workhorse"
High-speed single- and double-station performance
for containers from 50 ml to 12 liters.
Flexibility you can build a line around.

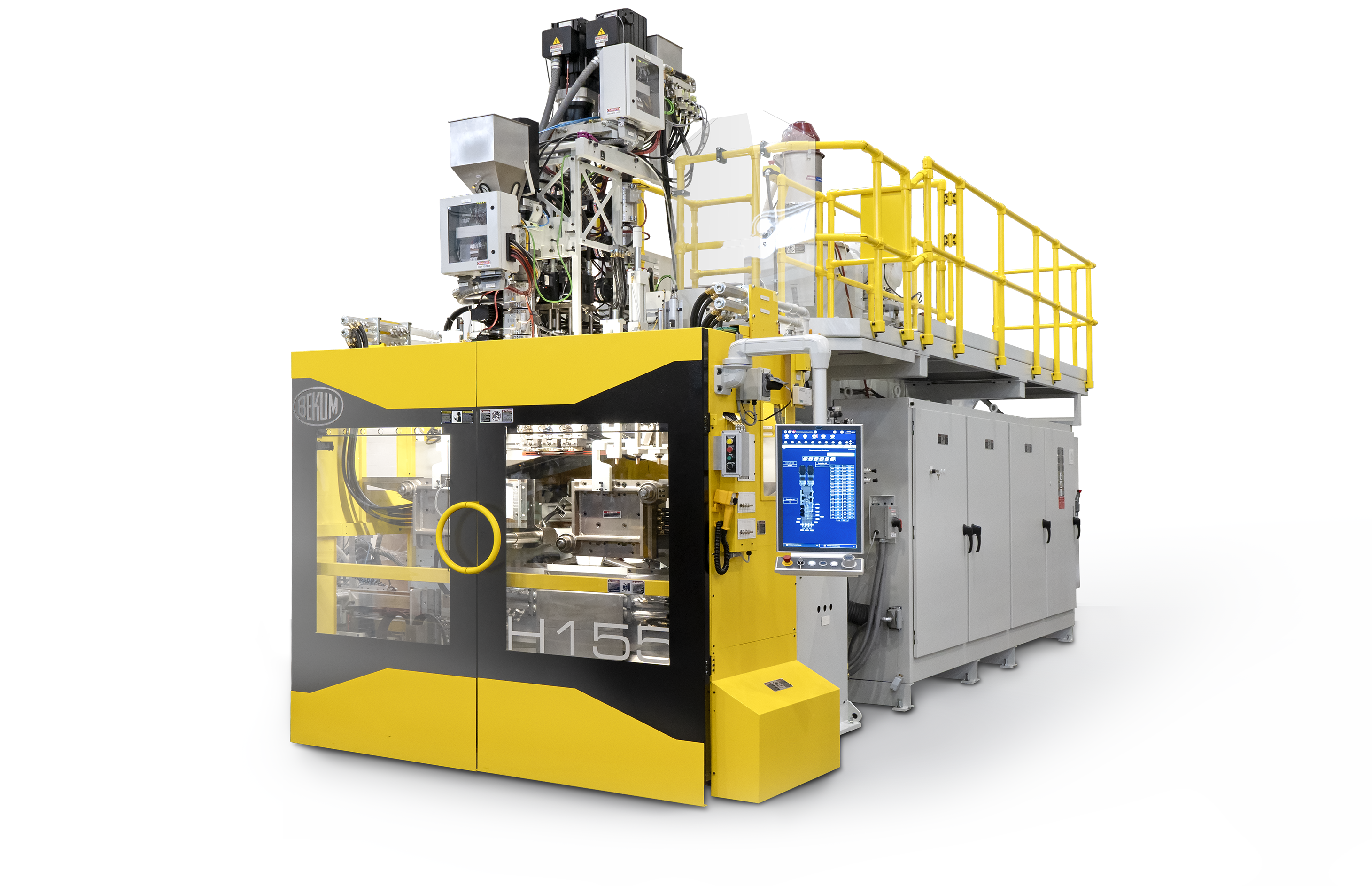

For decades, the H-Series has been the backbone of custom blow molding across North America. Available as the single-station H-121S or the double-station H-121 and H-155, these machines are built for shops that need to switch between article sizes, cavitation and mold configurations without slowing down production. With up to 16 cavities, IML compatibility and Tri-Ex, Co-Ex and View Stripe capability, the H-Series covers a wider range of applications on a single, compact platform — from personal care and household containers to technical and industrial packaging.
The Industry's Trusted Platform.
Six Reasons Why.
Containers from 50 ml to 12 Liters
One platform covers an unusually wide range of container sizes — from small personal care bottles to 12-liter industrial containers. Fewer machines, more flexibility on the floor.
Up to 16 Cavities per Mold
From 2-cavity single-station tooling to 16-cavity double-station setups, cavitation scales to your volume — without changing platforms. Centerline spacing from 50 to 215 mm.
In-Mold Labeling Capable
The H-Series supports in-mold labeling (option), so labeled containers move straight into production — no separate labeling step.
Tri-Ex, Co-Ex & View Stripe
Multi-layer head options bring barrier packaging and cosmetic view-stripe bottles onto the same platform as standard mono-layer production — one machine for a broader mix of jobs.
A Compact, Efficient Footprint
Single- and double-station configurations are built to fit tight plant floors without giving up cavitation or output — more production per square foot of floor space.
Decades of Reliability
The H-Series has run continuously in custom molding operations across North America for decades — earning its reputation as the industry's workhorse one production run at a time.
The Workhorse of Custom Blow Molding.
Decades of proven performance, built for your production floor.
Multi-Layer & IML in One Platform
With Tri-Ex, Co-Ex and View Stripe head options plus in-mold labeling compatibility, the H-Series handles barrier packaging, cosmetic view-stripe bottles and labeled containers without switching machines — reducing tooling investment and changeover time..
Technical specifications
H-121D

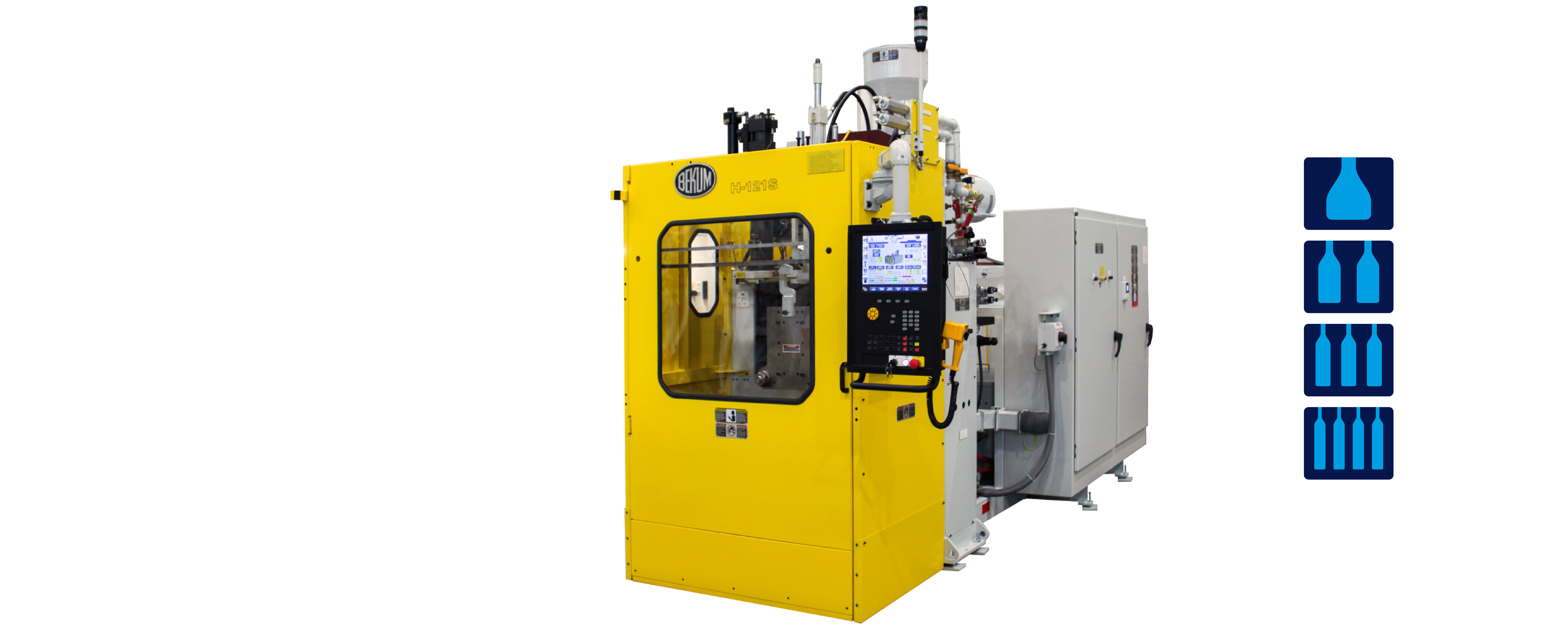

Product possibilities H-121S
1 Cavities: Maximum Article Capacity
2 Cavities: 125/140 mm Center Line Distances
3 Cavities: 85/100 mm Center Line Distances
4 Cavities: 70 mm Center Line Distances

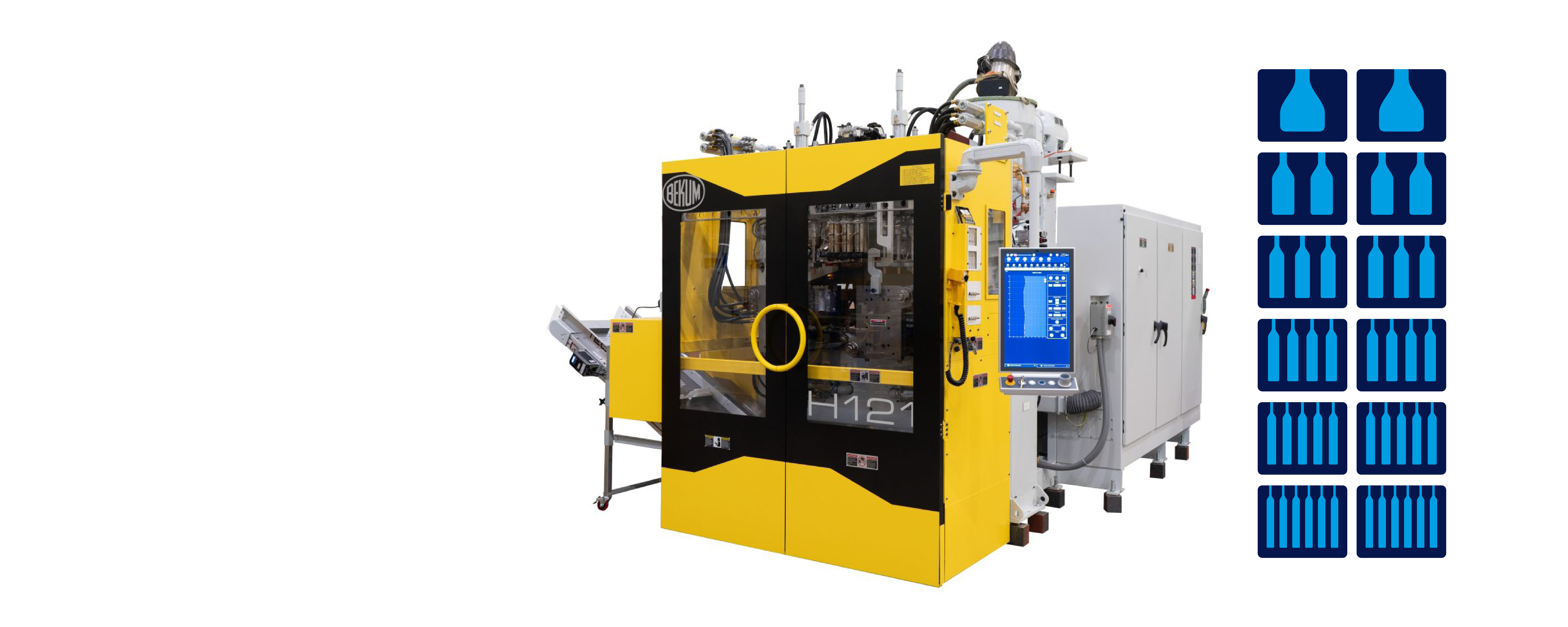

Product possibilities H-121
2 Cavities: Maximum Article Capacity
4 Cavities: 125/140 mm Center Line Distances
6 Cavities: 85/100 mm Center Line Distances
8 Cavities: 70 mm Center Line Distances
10 Cavities: 60 mm Center Line Distances
12 Cavities: 50 mm Center Line Distances

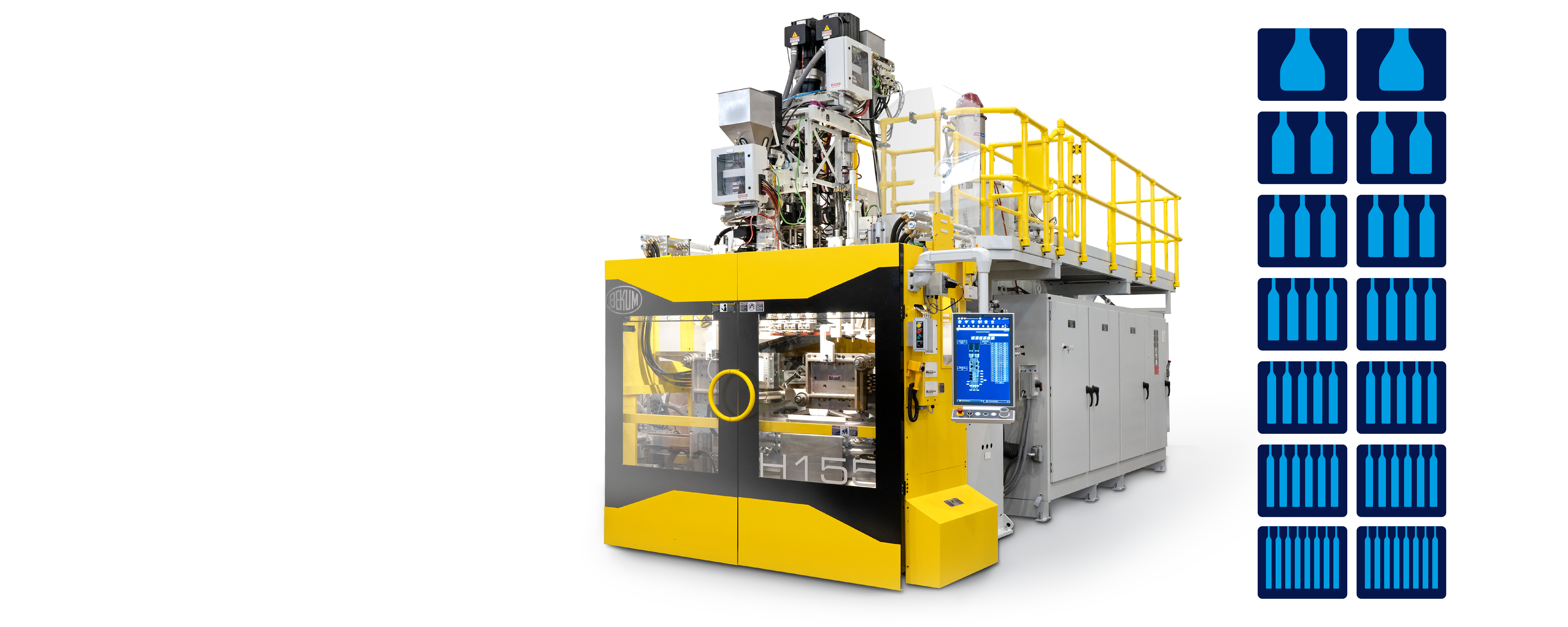

Product possibilities H-155
2 Cavities: Maximum Article Capacity
4 Cavities: 215 mm Center Line Distances
6 Cavities: 125 mm Center Line Distances
8 Cavities: 100 mm Center Line Distances
10 Cavities: 80 mm Center Line Distances
12 Cavities: 70 mm Center Line Distances
16 Cavities: 50 mm Center Line Distances
